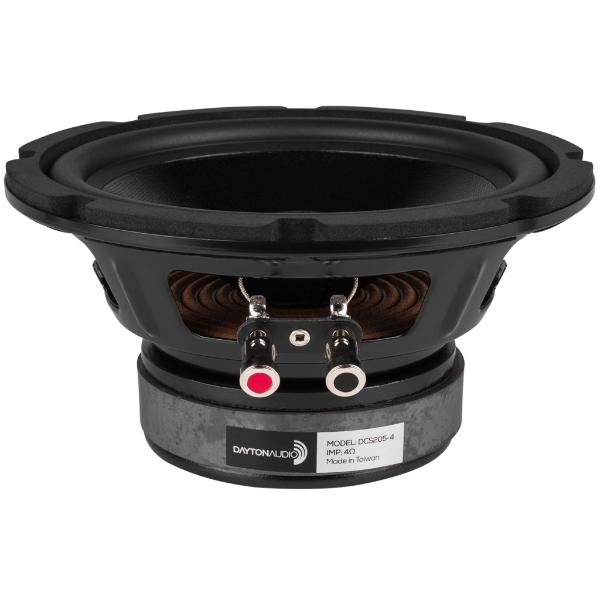

Dayton Audio DCS205-4
Dayton Audio DCS205-4
Model

Dayton Audio DCS205-4

Rating
DIAM
8"
FS(Hz)
32.3
VAS(l)
27
QTS
0.37
PWR(W)
300
SPL(dB)
85.5
IMP(Ohm)
4x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
32.3
Vas(l)
27
Qts
0.37
Qms
6.28
Qes
0.393
Bl(Tm)
10.7
Cms(mm/N)
0.421
Rms(kg/s)
1.865
Le(mH)
0
Mms(gr)
58
Vd(l)
0.187
Sd(sq.mm)
21265
X-max(mm)
9
X-mech(mm)
0
Re(Ohm)
3.8

General Parameters

Diameter (inch)
8
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.5
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
180
Mounting Depth (mm)
104
Magnet Diameter (mm)
120

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
