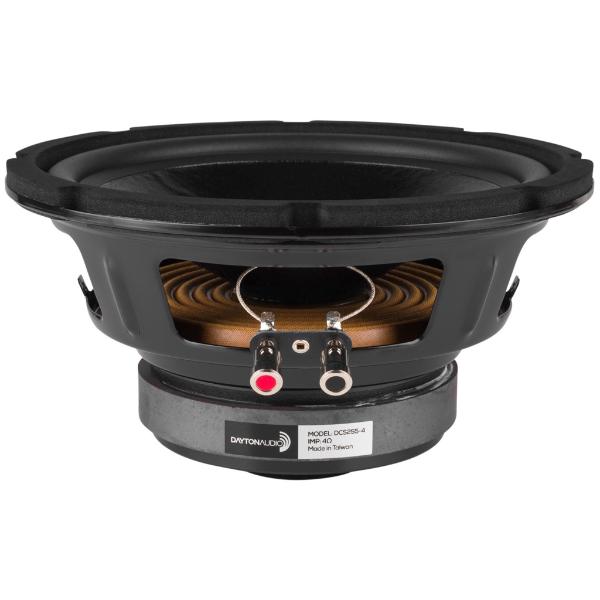

Dayton Audio DCS255-4
Dayton Audio DCS255-4
Model

Dayton Audio DCS255-4

Rating
DIAM
10"
FS(Hz)
37.7
VAS(l)
32.1
QTS
0.46
PWR(W)
400
SPL(dB)
87.3
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
37.7
Vas(l)
32.1
Qts
0.46
Qms
7.42
Qes
0.49
Bl(Tm)
12.6
Cms(mm/N)
0.187
Rms(kg/s)
3.049
Le(mH)
0
Mms(gr)
96
Vd(l)
0.289
Sd(sq.mm)
34790
X-max(mm)
8
X-mech(mm)
0
Re(Ohm)
3.4

General Parameters

Diameter (inch)
10
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.3
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
135
Magnet Diameter (mm)
145

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
