Model

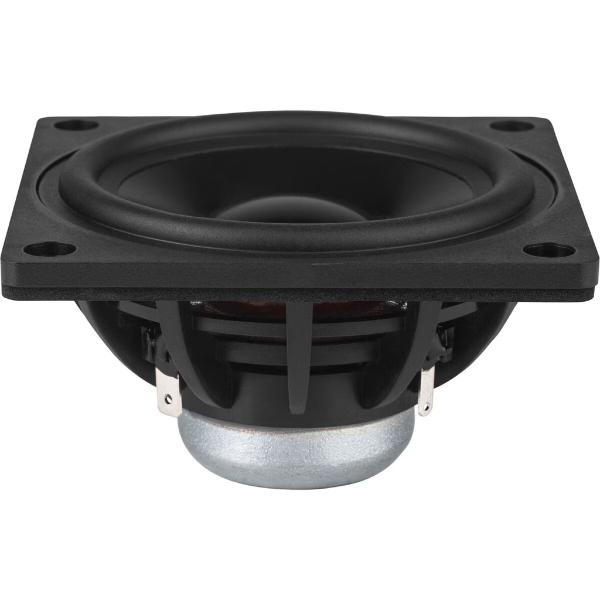

Dayton Audio DMA80-8
Rating
DIAM
3"
FS(Hz)
97.6
VAS(l)
1.34
QTS
0.47
PWR(W)
50
SPL(dB)
84.9
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
97.6
Vas(l)
1.3
Qts
0.47
Qms
2.06
Qes
0.61
Bl(Tm)
5.1
Mms(gr)
3
Cms(mm/N)
0.985
Rms(kg/s)
0.804
Le(mH)
0.5
Re(Ohm)
7.5
Sd(sq.mm)
3120
Vd(l)
0.008
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
3
Max Power(W.)
50
RMS Power(W.)
25
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.2
Sensitivity(dB) 1-W
84.9
Sensitivity(dB) 2.8-V
85.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
96
Cutout Diameter (mm)
75
Mounting Depth (mm)
39
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP6P, Vented
