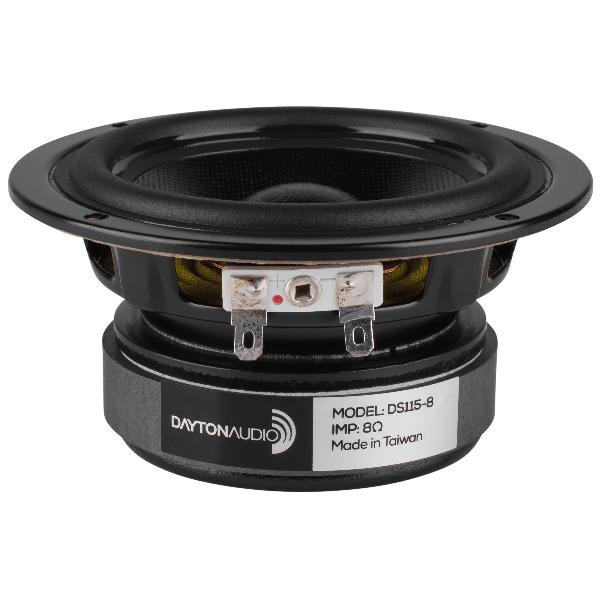

Dayton Audio DS115-8
Dayton Audio DS115-8
Model

Dayton Audio DS115-8

Rating
DIAM
4"
FS(Hz)
55.2
VAS(l)
4.3
QTS
0.38
PWR(W)
70
SPL(dB)
83.8
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
55.2
Vas(l)
4.3
Qts
0.38
Qms
2.1
Qes
0.46
Bl(Tm)
5.9
Cms(mm/N)
1.05
Rms(kg/s)
1.305
Le(mH)
0
Mms(gr)
8
Vd(l)
0.022
Sd(sq.mm)
5410
X-max(mm)
4
X-mech(mm)
0
Re(Ohm)
5.8

General Parameters

Diameter (inch)
4
Max Power(W.)
70
RMS Power(W.)
35
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.8
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
94
Mounting Depth (mm)
80
Magnet Diameter (mm)
52

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
