Model

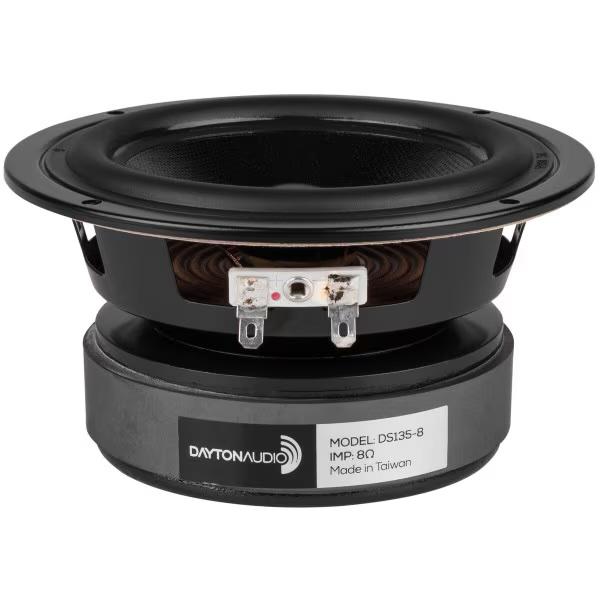

Dayton Audio DS135-8
Rating
DIAM
5"
FS(Hz)
52.5
VAS(l)
7.3
QTS
0.39
PWR(W)
100
SPL(dB)
85.2
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
52.5
Vas(l)
7.3
Qts
0.39
Qms
2.02
Qes
0.483
Bl(Tm)
6.2
Mms(gr)
10
Cms(mm/N)
0.947
Rms(kg/s)
1.584
Le(mH)
0.84
Re(Ohm)
5.9
Sd(sq.mm)
7359
Vd(l)
0.405
X-max(mm)
55
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
100
RMS Power(W.)
50
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.21
Sensitivity(dB) 1-W
85.2
Sensitivity(dB) 2.8-V
86.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
135
Cutout Diameter (mm)
112
Mounting Depth (mm)
69
Magnet Diameter (mm)
100
Optimum Enclosures
Enclosures
Vented, BP6P
