Model

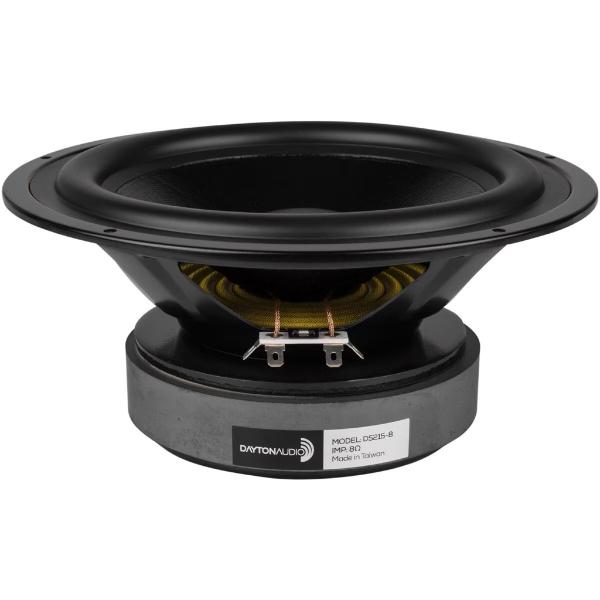

Dayton Audio DS215-8
Rating
DIAM
8"
FS(Hz)
34.3
VAS(l)
43.1
QTS
0.31
PWR(W)
160
SPL(dB)
88.5
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
34.3
Vas(l)
43.1
Qts
0.31
Qms
1.75
Qes
0.377
Bl(Tm)
9.9
Mms(gr)
30
Cms(mm/N)
0.72
Rms(kg/s)
3.658
Le(mH)
1.25
Re(Ohm)
5.8
Sd(sq.mm)
20622
Vd(l)
0.113
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
160
RMS Power(W.)
80
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.45
Sensitivity(dB) 1-W
88.5
Sensitivity(dB) 2.8-V
89.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
216
Cutout Diameter (mm)
180
Mounting Depth (mm)
95
Magnet Diameter (mm)
135
Optimum Enclosures
Enclosures
Vented, BP6P
