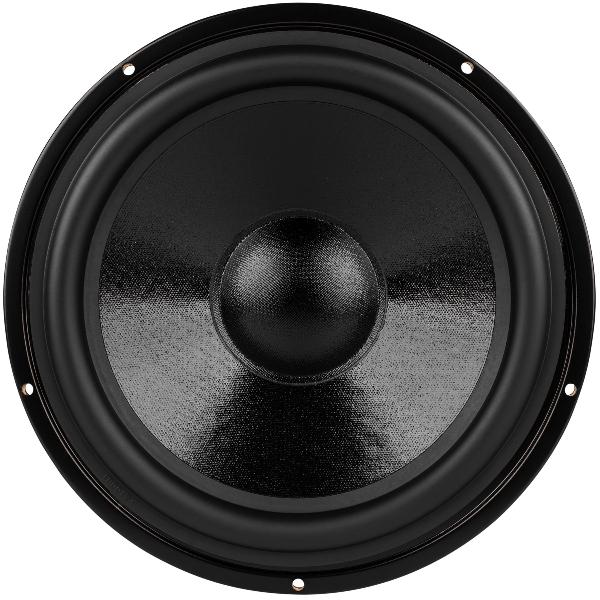

Dayton Audio DS270-8
Dayton Audio DS270-8
Model

Dayton Audio DS270-8

Rating
DIAM
10"
FS(Hz)
31.6
VAS(l)
87.5
QTS
0.44
PWR(W)
200
SPL(dB)
88.9
IMP(Ohm)
8x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
31.6
Vas(l)
87.5
Qts
0.44
Qms
2.4
Qes
0.539
Bl(Tm)
10.1
Cms(mm/N)
0.493
Rms(kg/s)
4.261
Le(mH)
0
Mms(gr)
52
Vd(l)
0.195
Sd(sq.mm)
35375
X-max(mm)
6
X-mech(mm)
0
Re(Ohm)
5.4

General Parameters

Diameter (inch)
10
Max Power(W.)
200
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.9
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
227
Mounting Depth (mm)
108
Magnet Diameter (mm)
156

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
