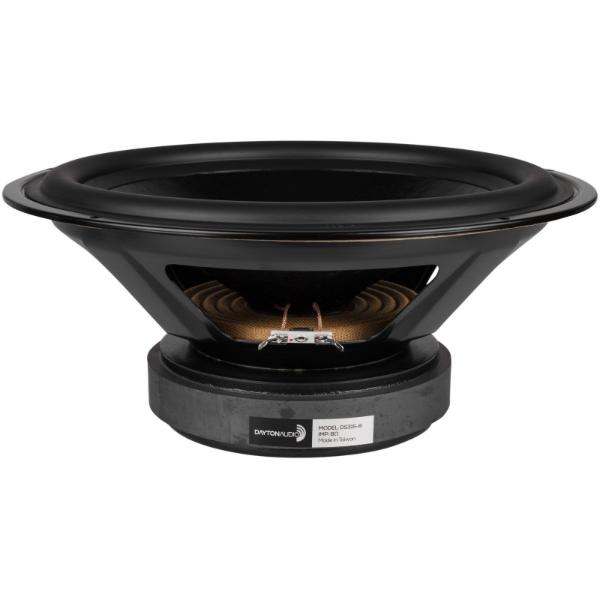

Dayton Audio DS315-8
Dayton Audio DS315-8
Model

Dayton Audio DS315-8

Rating
DIAM
12"
FS(Hz)
24.2
VAS(l)
159
QTS
0.31
PWR(W)
240
SPL(dB)
89.7
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
24.2
Vas(l)
159
Qts
0.31
Qms
1.8
Qes
0.37
Bl(Tm)
15.6
Cms(mm/N)
0.44
Rms(kg/s)
8.23
Le(mH)
1.43
Mms(gr)
97
Vd(l)
0.277
Sd(sq.mm)
50670
X-max(mm)
6
X-mech(mm)
0
Re(Ohm)
6.1

General Parameters

Diameter (inch)
12
Max Power(W.)
240
RMS Power(W.)
120
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.59
Sensitivity(dB) 1-W
89.7
Sensitivity(dB) 2.8-V
90.9

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
314
Cutout Diameter (mm)
272
Mounting Depth (mm)
130
Magnet Diameter (mm)
170

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
