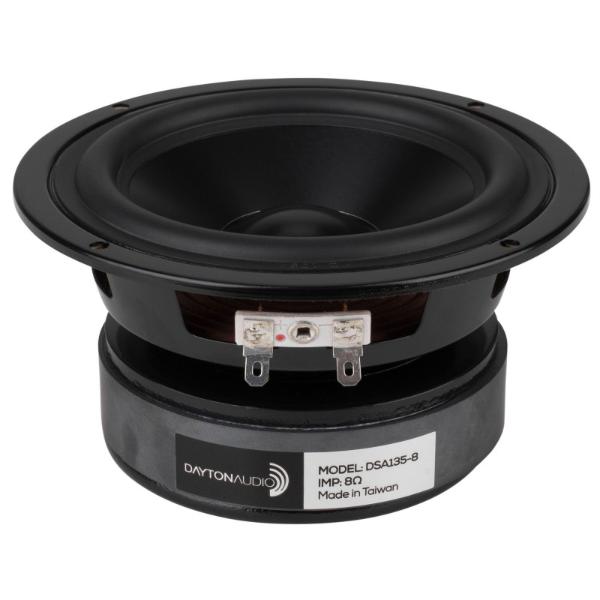

Dayton Audio DSA135-8
Dayton Audio DSA135-8
Model

Dayton Audio DSA135-8

Rating
DIAM
5"
FS(Hz)
51.8
VAS(l)
7.9
QTS
0.38
PWR(W)
100
SPL(dB)
85.5
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
51.8
Vas(l)
7.9
Qts
0.38
Qms
2
Qes
0.47
Bl(Tm)
6.2
Cms(mm/N)
0.99
Rms(kg/s)
1.52
Le(mH)
0.78
Mms(gr)
10
Vd(l)
0.037
Sd(sq.mm)
7540
X-max(mm)
5
X-mech(mm)
0
Re(Ohm)
5.9

General Parameters

Diameter (inch)
5
Max Power(W.)
100
RMS Power(W.)
50
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.23
Sensitivity(dB) 1-W
85.5
Sensitivity(dB) 2.8-V
86.9

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
135
Cutout Diameter (mm)
112
Mounting Depth (mm)
69
Magnet Diameter (mm)
100

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
