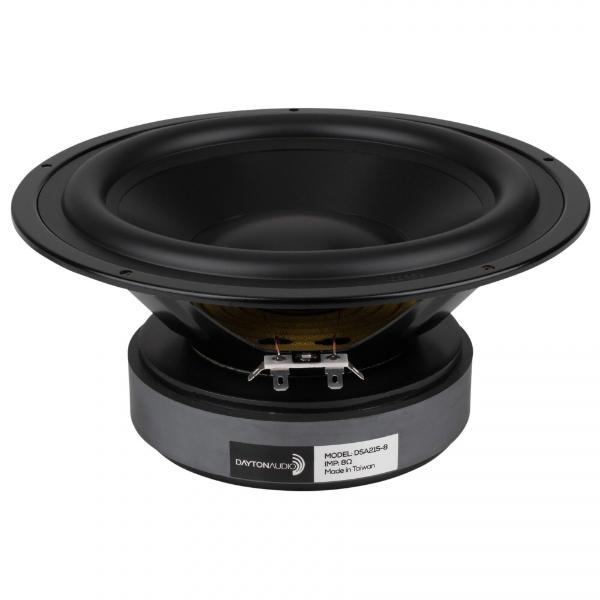

Dayton Audio DSA215-8
Dayton Audio DSA215-8
Model

Dayton Audio DSA215-8

Rating
DIAM
8"
FS(Hz)
35
VAS(l)
37.4
QTS
0.33
PWR(W)
160
SPL(dB)
87.9
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
35
Vas(l)
37.4
Qts
0.33
Qms
1.87
Qes
0.4
Bl(Tm)
10.6
Cms(mm/N)
0.6
Rms(kg/s)
4.069
Le(mH)
1
Mms(gr)
35
Vd(l)
0.116
Sd(sq.mm)
21120
X-max(mm)
6
X-mech(mm)
0
Re(Ohm)
5.9

General Parameters

Diameter (inch)
8
Max Power(W.)
160
RMS Power(W.)
80
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.39
Sensitivity(dB) 1-W
87.9
Sensitivity(dB) 2.8-V
89.2

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
216
Cutout Diameter (mm)
180
Mounting Depth (mm)
92
Magnet Diameter (mm)
135

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
