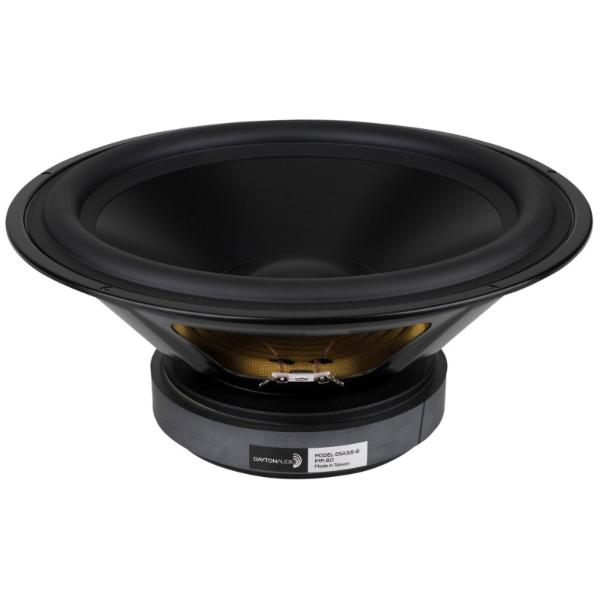

Dayton Audio DSA315-8
Dayton Audio DSA315-8
Model

Dayton Audio DSA315-8

Rating
DIAM
12"
FS(Hz)
24.2
VAS(l)
147
QTS
0.33
PWR(W)
240
SPL(dB)
89
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
24.2
Vas(l)
147
Qts
0.33
Qms
1.9
Qes
0.4
Bl(Tm)
16.1
Cms(mm/N)
0.382
Rms(kg/s)
9.05
Le(mH)
1.11
Mms(gr)
113
Vd(l)
0.279
Sd(sq.mm)
50670
X-max(mm)
6
X-mech(mm)
4
Re(Ohm)
6

General Parameters

Diameter (inch)
12
Max Power(W.)
240
RMS Power(W.)
120
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.5
Sensitivity(dB) 1-W
89
Sensitivity(dB) 2.8-V
90.3

Mounting Information

Speaker Displacement (l)
3.5
Total Diameter (mm)
314
Cutout Diameter (mm)
272
Mounting Depth (mm)
130
Magnet Diameter (mm)
170

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
