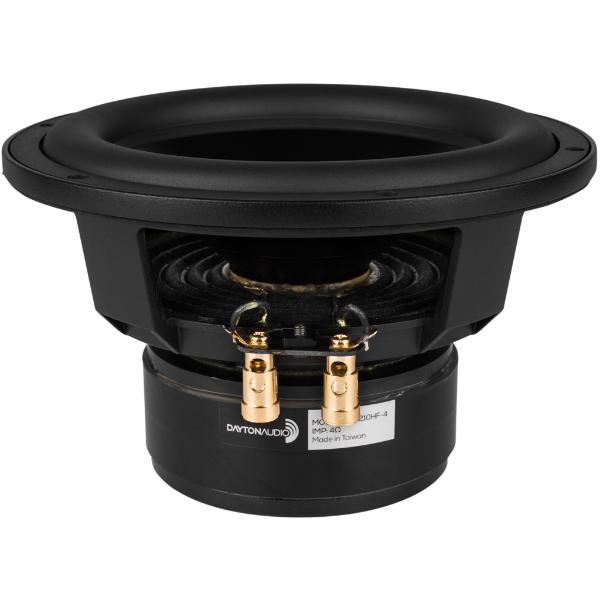

Dayton Audio RSS210HF-4
Dayton Audio RSS210HF-4
Model

Dayton Audio RSS210HF-4

Rating
DIAM
8"
FS(Hz)
29.6
VAS(l)
23.7
QTS
0.57
PWR(W)
560
SPL(dB)
81.3
IMP(Ohm)
4x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
29.6
Vas(l)
23.7
Qts
0.57
Qms
3.25
Qes
0.691
Bl(Tm)
8.1
Mms(gr)
78
Cms(mm/N)
0.369
Rms(kg/s)
4.486
Le(mH)
0
Re(Ohm)
3.1
Sd(sq.mm)
21900
Vd(l)
0.197
X-max(mm)
9
X-mech(mm)
0

General Parameters

Diameter (inch)
8
Max Power(W.)
560
RMS Power(W.)
280
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81.3
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
185
Mounting Depth (mm)
116
Magnet Diameter (mm)
120

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
