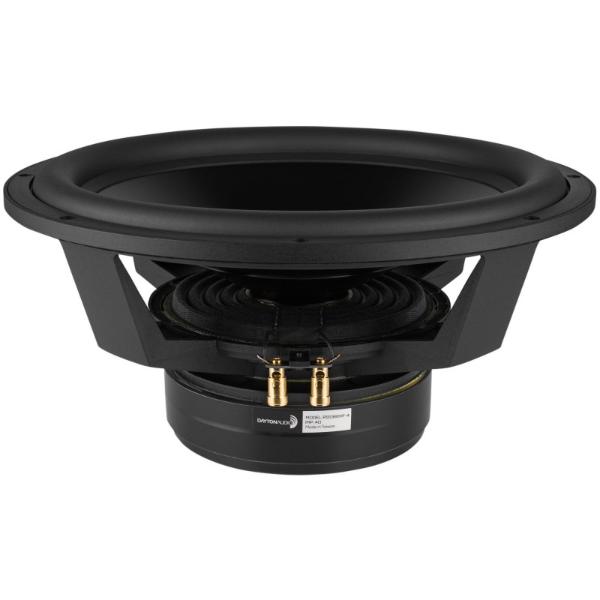

Dayton Audio RSS390HF-4
Dayton Audio RSS390HF-4
Model

Dayton Audio RSS390HF-4

Rating
DIAM
15"
FS(Hz)
19.5
VAS(l)
212
QTS
0.43
PWR(W)
1000
SPL(dB)
86.8
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
19.5
Vas(l)
212
Qts
0.43
Qms
3.02
Qes
0.5
Bl(Tm)
15
Mms(gr)
306
Cms(mm/N)
0.218
Rms(kg/s)
12.414
Le(mH)
0.92
Re(Ohm)
3
Sd(sq.mm)
83000
Vd(l)
1.162
X-max(mm)
14
X-mech(mm)
0

General Parameters

Diameter (inch)
15
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.3
Sensitivity(dB) 1-W
86.8
Sensitivity(dB) 2.8-V
91.1

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
388
Cutout Diameter (mm)
356
Mounting Depth (mm)
168
Magnet Diameter (mm)
190

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
