Model

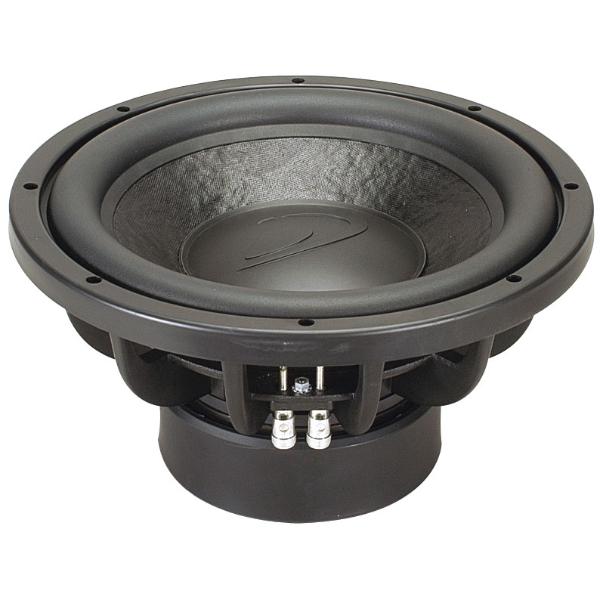

Dayton Audio TITANIC MK-III(TIT320C-4)
Rating
DIAM
12"
FS(Hz)
24.9
VAS(l)
64.3
QTS
0.45
PWR(W)
1000
SPL(dB)
85
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
24.9
Vas(l)
64.3
Qts
0.45
Qms
7.03
Qes
0.481
Bl(Tm)
15.4
Mms(gr)
226
Cms(mm/N)
0.181
Rms(kg/s)
5.021
Le(mH)
0
Re(Ohm)
3.3
Sd(sq.mm)
50048
Vd(l)
0.936
X-max(mm)
19
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
279
Mounting Depth (mm)
161
Magnet Diameter (mm)
165
Optimum Enclosures
Enclosures
Closed, BP4
