Model

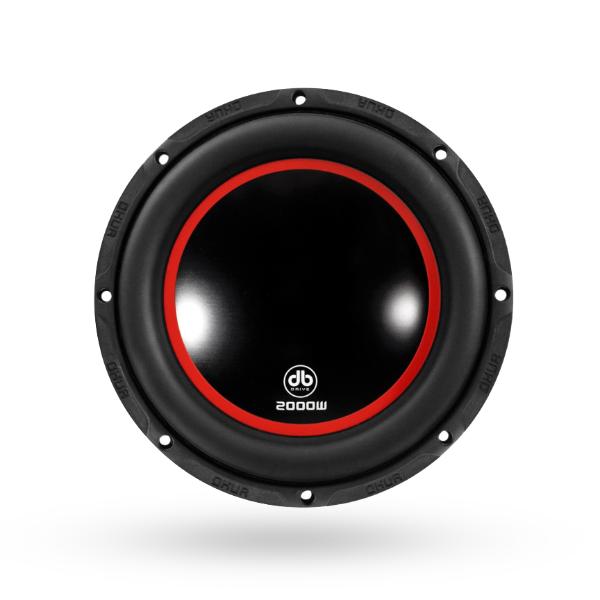

DB Drive K9-10D4
Rating
DIAM
10"
FS(Hz)
30.3
VAS(l)
14.4
QTS
0.43
PWR(W)
2000
SPL(dB)
81.1
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30.3
Vas(l)
14.4
Qts
0.43
Qms
4.57
Qes
0.475
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
6.4
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
25
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
234
Mounting Depth (mm)
159
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
