Model

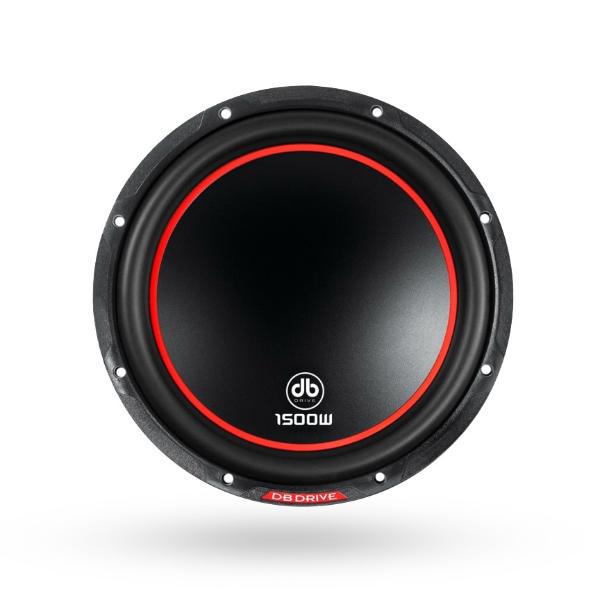

DB Drive PL 15D4
Rating
DIAM
15"
FS(Hz)
24
VAS(l)
85.5
QTS
0.39
PWR(W)
2000
SPL(dB)
86.6
IMP(Ohm)
4x2
avb
UNK
Thiele-Small Parameters
Fs(Hz)
24
Vas(l)
85.5
Qts
0.387
Qms
6.76
Qes
0.41
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
21
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
