Model

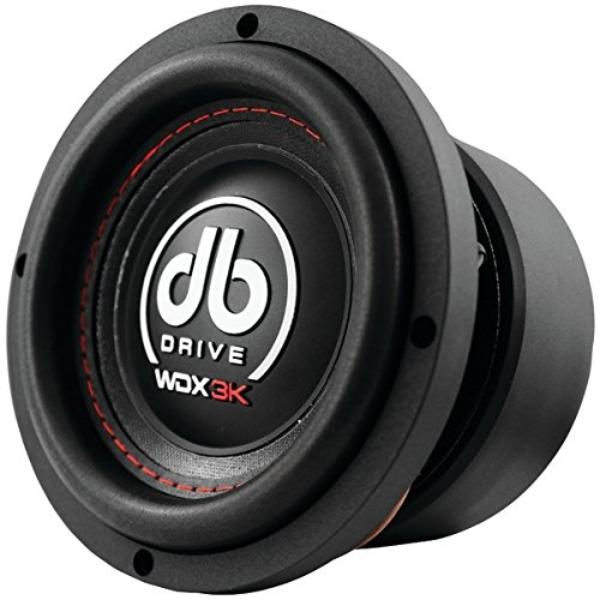

DB Drive WDX10 3K
Rating
DIAM
10"
FS(Hz)
48.5
VAS(l)
11.5
QTS
0.68
PWR(W)
1500
SPL(dB)
84.1
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
48.5
Vas(l)
11.5
Qts
0.68
Qms
5.34
Qes
0.779
Bl(Tm)
19.4
Mms(gr)
135
Cms(mm/N)
0.08
Rms(kg/s)
7.698
Le(mH)
0
Re(Ohm)
7.1
Sd(sq.mm)
31837
Vd(l)
0.446
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1500
RMS Power(W.)
750
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
234
Mounting Depth (mm)
150
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
