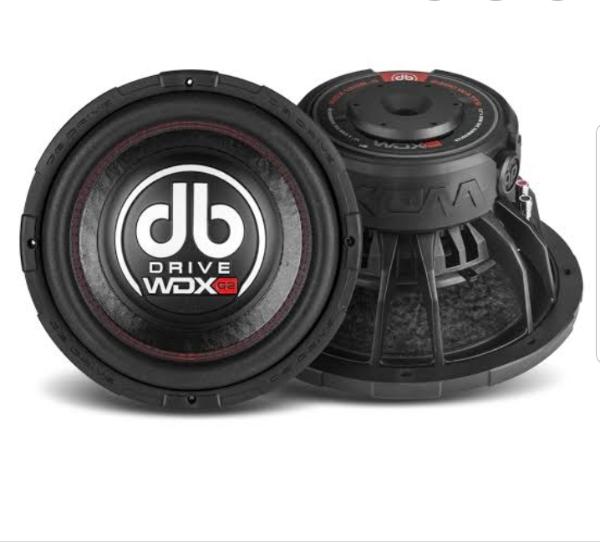

DB Drive WDX12G2-4
DB Drive WDX12G2-4
Model

DB Drive WDX12G2-4

Rating
DIAM
12"
FS(Hz)
41.5
VAS(l)
23
QTS
0.48
PWR(W)
2500
SPL(dB)
86.6
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
41.5
Vas(l)
23
Qts
0.48
Qms
4
Qes
0.55
Bl(Tm)
27.7
Mms(gr)
252
Cms(mm/N)
0.06
Rms(kg/s)
16.6
Le(mH)
3.89
Re(Ohm)
6.4
Sd(sq.mm)
53129
Vd(l)
1.063
X-max(mm)
20
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
2500
RMS Power(W.)
1250
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.29
Sensitivity(dB) 1-W
86.6
Sensitivity(dB) 2.8-V
87.6

Mounting Information

Speaker Displacement (l)
5.38
Total Diameter (mm)
329
Cutout Diameter (mm)
288
Mounting Depth (mm)
173
Magnet Diameter (mm)
206

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
