Model

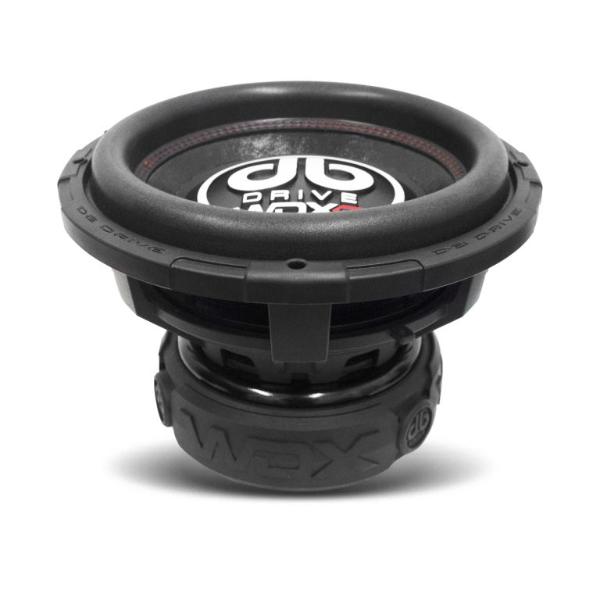

DB Drive WDX12G5-2
Rating
DIAM
12"
FS(Hz)
39
VAS(l)
21
QTS
0.53
PWR(W)
6000
SPL(dB)
85
IMP(Ohm)
2x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
39
Vas(l)
21
Qts
0.529
Qms
4.2
Qes
0.606
Bl(Tm)
22.6
Mms(gr)
317
Cms(mm/N)
0.052
Rms(kg/s)
18.67
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
53375
Vd(l)
1.334
X-max(mm)
25
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
6000
RMS Power(W.)
3000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.2
Sensitivity(dB) 1-W
85
Sensitivity(dB) 2.8-V
88
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
329
Cutout Diameter (mm)
284
Mounting Depth (mm)
204
Magnet Diameter (mm)
284
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
