Model

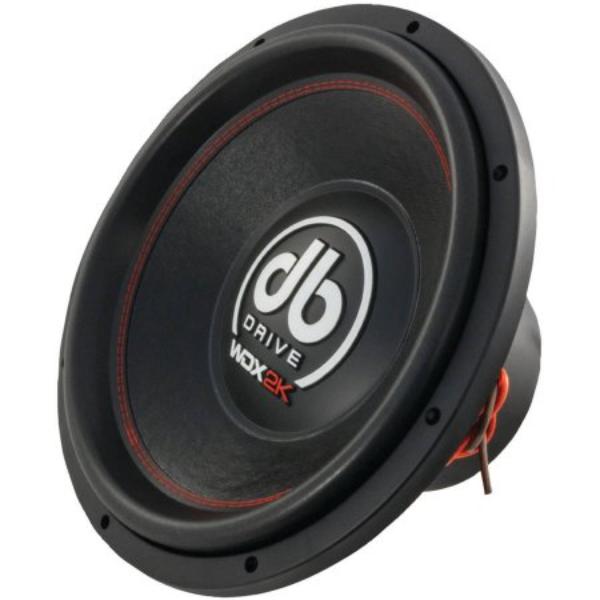

DB Drive WDX15 2K
Rating
DIAM
15"
FS(Hz)
35.9
VAS(l)
46.6
QTS
0.67
PWR(W)
2000
SPL(dB)
86.2
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35.9
Vas(l)
46.6
Qts
0.67
Qms
4.14
Qes
0.799
Bl(Tm)
26.7
Mms(gr)
438
Cms(mm/N)
0.045
Rms(kg/s)
23.87
Le(mH)
0
Re(Ohm)
5.8
Sd(sq.mm)
85449
Vd(l)
1.068
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
359
Mounting Depth (mm)
192
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
