Model

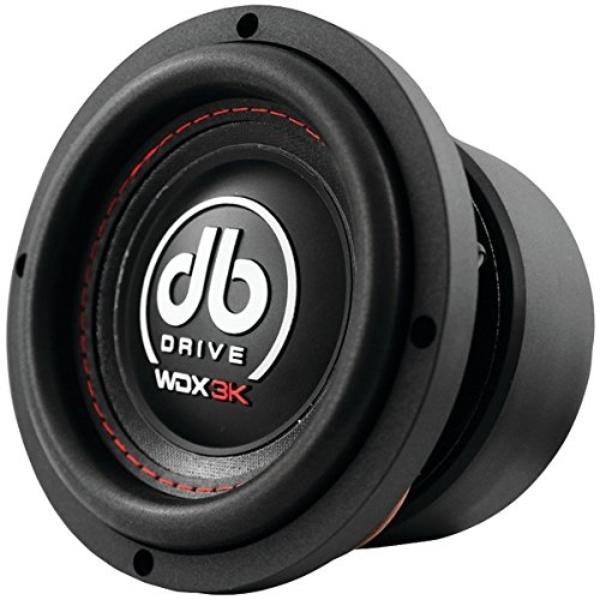

DB Drive WDX8 3K
Rating
DIAM
8"
FS(Hz)
43.5
VAS(l)
9.6
QTS
0.5
PWR(W)
1200
SPL(dB)
83.3
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
43.5
Vas(l)
9.6
Qts
0.5
Qms
4.45
Qes
0.56
Bl(Tm)
17.7
Mms(gr)
89
Cms(mm/N)
0.15
Rms(kg/s)
5.479
Le(mH)
0
Re(Ohm)
7.2
Sd(sq.mm)
21243
Vd(l)
0.266
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
186
Mounting Depth (mm)
143
Magnet Diameter (mm)
173
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
