Model

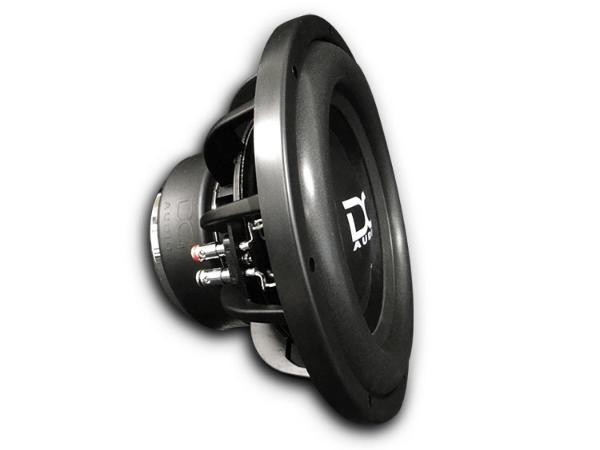

DC Audio LEVEL 2 10 D2
Rating
DIAM
10"
FS(Hz)
35.6
VAS(l)
13.9
QTS
0.56
PWR(W)
1200
SPL(dB)
82.1
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35.6
Vas(l)
13.9
Qts
0.555
Qms
9
Qes
0.592
Bl(Tm)
24
Mms(gr)
211
Cms(mm/N)
0.095
Rms(kg/s)
5.23
Le(mH)
7
Re(Ohm)
7.2
Sd(sq.mm)
32400
Vd(l)
0.713
X-max(mm)
22
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.1
Sensitivity(dB) 1-W
82.1
Sensitivity(dB) 2.8-V
82.5
Mounting Information
Speaker Displacement (l)
3.4
Total Diameter (mm)
279
Cutout Diameter (mm)
237
Mounting Depth (mm)
140
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
