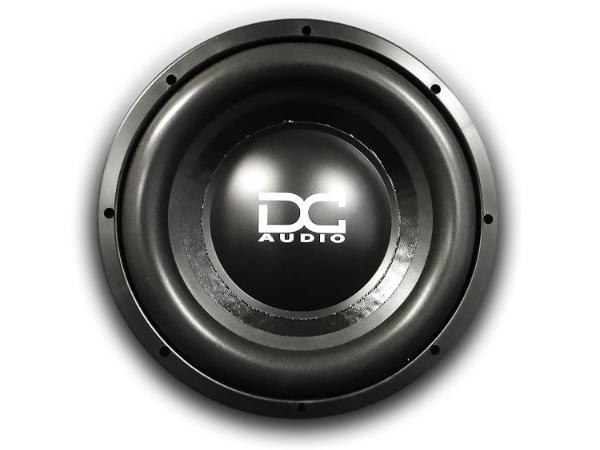

Model
DC Audio LEVEL 2 12 D2
Rating
DIAM
12"
FS(Hz)
33
VAS(l)
30.6
QTS
0.59
PWR(W)
1200
SPL(dB)
84.2
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
30.6
Qts
0.594
Qms
8.5
Qes
0.639
Bl(Tm)
24
Mms(gr)
245
Cms(mm/N)
0.095
Rms(kg/s)
5.98
Le(mH)
7
Re(Ohm)
3.6
Sd(sq.mm)
48100
Vd(l)
1.058
X-max(mm)
22
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.17
Sensitivity(dB) 1-W
84.2
Sensitivity(dB) 2.8-V
87.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
