Model

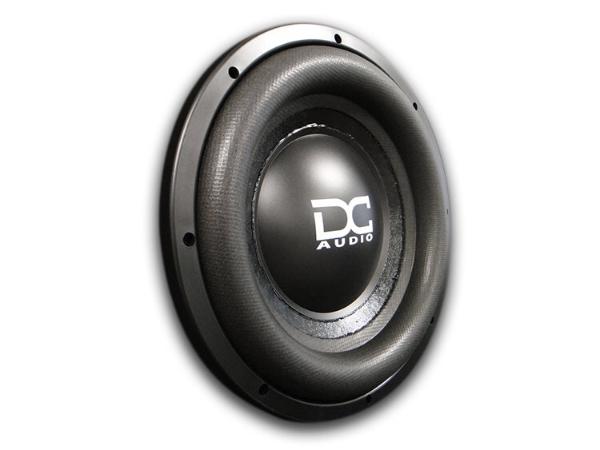

DC Audio LEVEL 3 12 D2
Rating
DIAM
12"
FS(Hz)
35.4
VAS(l)
29
QTS
0.57
PWR(W)
1800
SPL(dB)
85
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35.4
Vas(l)
29
Qts
0.574
Qms
8.3
Qes
0.617
Bl(Tm)
17.2
Mms(gr)
225
Cms(mm/N)
0.09
Rms(kg/s)
6.03
Le(mH)
3.5
Re(Ohm)
3.6
Sd(sq.mm)
47657
Vd(l)
1.12
X-max(mm)
24
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1800
RMS Power(W.)
900
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.2
Sensitivity(dB) 1-W
85
Sensitivity(dB) 2.8-V
88.5
Mounting Information
Speaker Displacement (l)
4.5
Total Diameter (mm)
318
Cutout Diameter (mm)
279
Mounting Depth (mm)
171
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
