Model

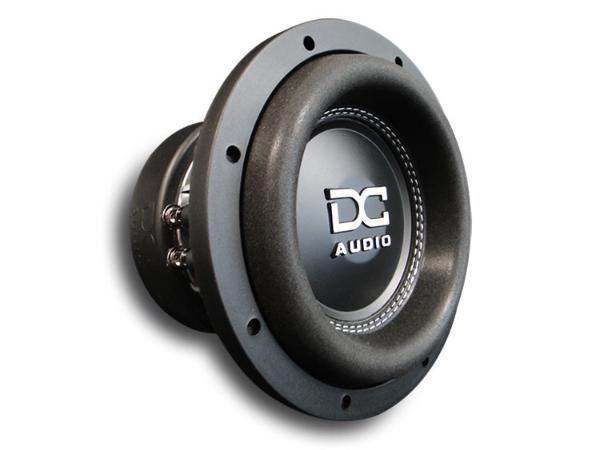

DC Audio M3 8 D2
Rating
DIAM
8"
FS(Hz)
35.3
VAS(l)
7.3
QTS
0.6
PWR(W)
1200
SPL(dB)
78.7
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35.3
Vas(l)
7.3
Qts
0.601
Qms
6.7
Qes
0.66
Bl(Tm)
12.6
Mms(gr)
151
Cms(mm/N)
0.135
Rms(kg/s)
5
Le(mH)
5
Re(Ohm)
3.1
Sd(sq.mm)
20187
Vd(l)
0.363
X-max(mm)
18
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.05
Sensitivity(dB) 1-W
78.7
Sensitivity(dB) 2.8-V
82.8
Mounting Information
Speaker Displacement (l)
2.83
Total Diameter (mm)
216
Cutout Diameter (mm)
184
Mounting Depth (mm)
146
Magnet Diameter (mm)
184
Optimum Enclosures
Enclosures
Closed, BP4
