Model

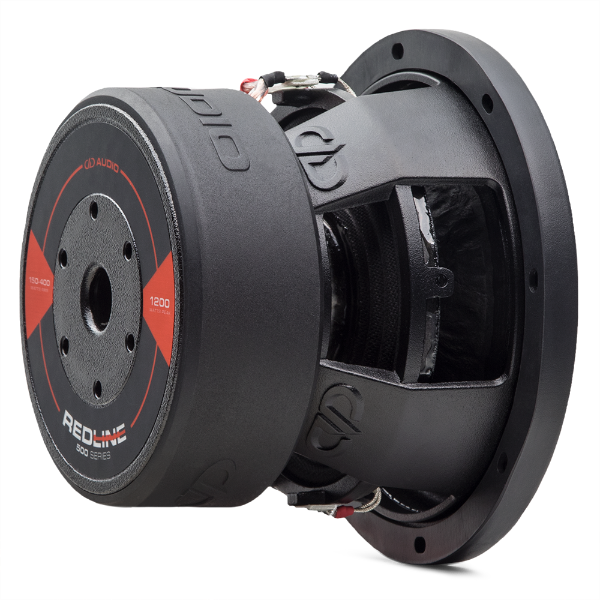

DD Audio 506D D2
Rating
DIAM
6"
FS(Hz)
43.7
VAS(l)
4.4
QTS
0.5
PWR(W)
1200
SPL(dB)
80
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
43.7
Vas(l)
4.4
Qts
0.5
Qms
4.9
Qes
0.558
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
9
X-mech(mm)
56
General Parameters
Diameter (inch)
6
Max Power(W.)
1200
RMS Power(W.)
400
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.06
Sensitivity(dB) 1-W
80
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.13
Total Diameter (mm)
178
Cutout Diameter (mm)
152
Mounting Depth (mm)
114
Magnet Diameter (mm)
140
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
