Model

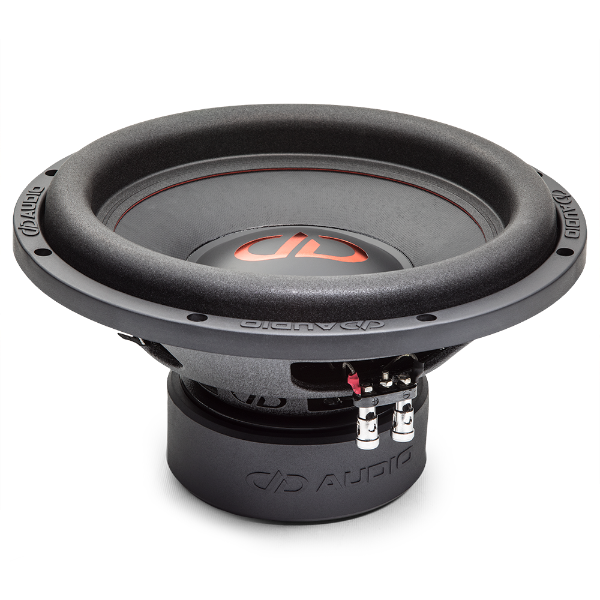

DD Audio 510D D2(REDLINE)
Rating
DIAM
10"
FS(Hz)
30.3
VAS(l)
27.4
QTS
0.42
PWR(W)
1200
SPL(dB)
84
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
30.3
Vas(l)
27.4
Qts
0.416
Qms
4.3
Qes
0.46
Bl(Tm)
0
Mms(gr)
160
Cms(mm/N)
0.173
Rms(kg/s)
7.06
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
33451
Vd(l)
0.335
X-max(mm)
10
X-mech(mm)
64
General Parameters
Diameter (inch)
10
Max Power(W.)
1200
RMS Power(W.)
400
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.16
Sensitivity(dB) 1-W
84
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.98
Total Diameter (mm)
254
Cutout Diameter (mm)
233
Mounting Depth (mm)
133
Magnet Diameter (mm)
140
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
