Model

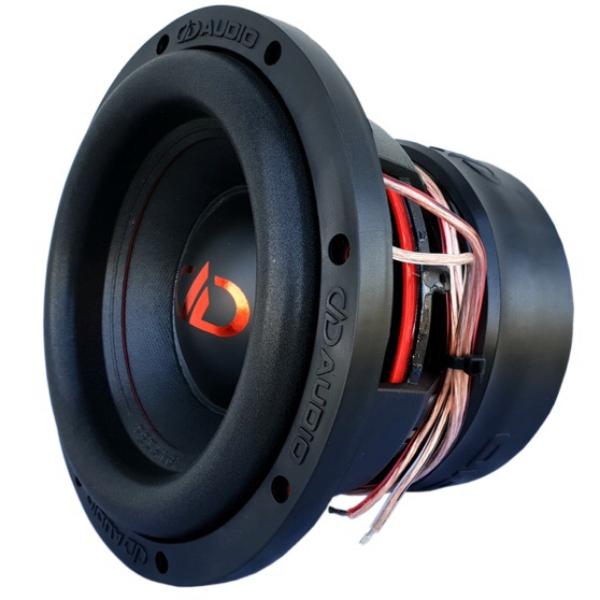

DD Audio 608D D2
Rating
DIAM
8"
FS(Hz)
38.4
VAS(l)
7.4
QTS
0.46
PWR(W)
1800
SPL(dB)
81.1
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
38.4
Vas(l)
7.4
Qts
0.459
Qms
5.8
Qes
0.499
Bl(Tm)
0
Mms(gr)
223
Cms(mm/N)
0.077
Rms(kg/s)
9.28
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
26000
Vd(l)
0.338
X-max(mm)
13
X-mech(mm)
64
General Parameters
Diameter (inch)
8
Max Power(W.)
1800
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.1
Sensitivity(dB) 1-W
81.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.98
Total Diameter (mm)
216
Cutout Diameter (mm)
184
Mounting Depth (mm)
146
Magnet Diameter (mm)
165
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
