Model

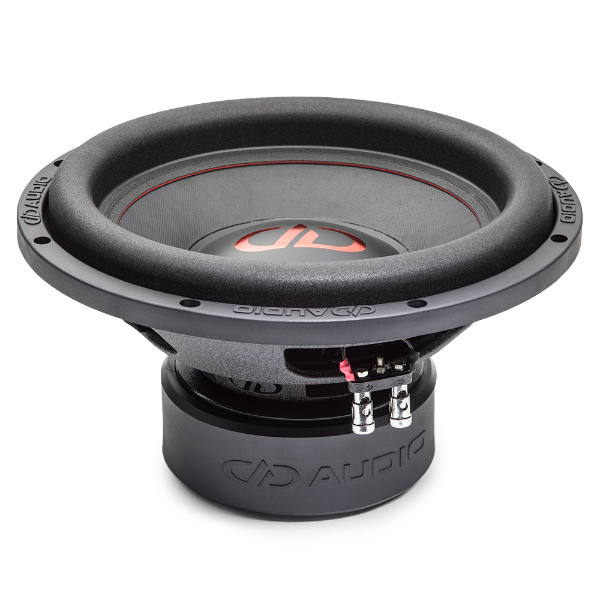

DD Audio 610D D2 (REDLINE)
Rating
DIAM
10"
FS(Hz)
35
VAS(l)
17
QTS
0.51
PWR(W)
1800
SPL(dB)
83
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
17
Qts
0.51
Qms
6.1
Qes
0.556
Bl(Tm)
0
Mms(gr)
181
Cms(mm/N)
0.114
Rms(kg/s)
6.54
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
32452
Vd(l)
0.357
X-max(mm)
11
X-mech(mm)
64
General Parameters
Diameter (inch)
10
Max Power(W.)
1800
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.13
Sensitivity(dB) 1-W
83
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.27
Total Diameter (mm)
254
Cutout Diameter (mm)
233
Mounting Depth (mm)
140
Magnet Diameter (mm)
165
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
