Model

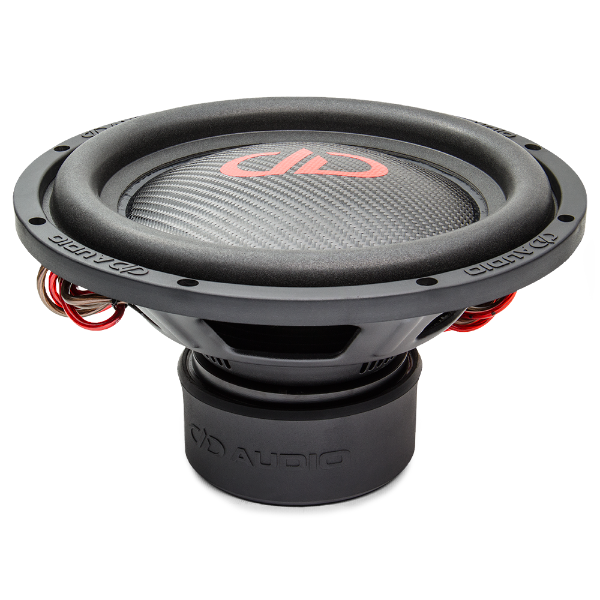

DD Audio DD1010C D2
Rating
DIAM
10"
FS(Hz)
28.3
VAS(l)
19.3
QTS
0.66
PWR(W)
800
SPL(dB)
79.6
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
28.3
Vas(l)
19.3
Qts
0.655
Qms
6.117
Qes
0.734
Bl(Tm)
0
Mms(gr)
337
Cms(mm/N)
0.094
Rms(kg/s)
9.794
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
38000
Vd(l)
0.532
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
79.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.699
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
144
Magnet Diameter (mm)
137
Optimum Enclosures
Enclosures
Closed, BP4
