Model

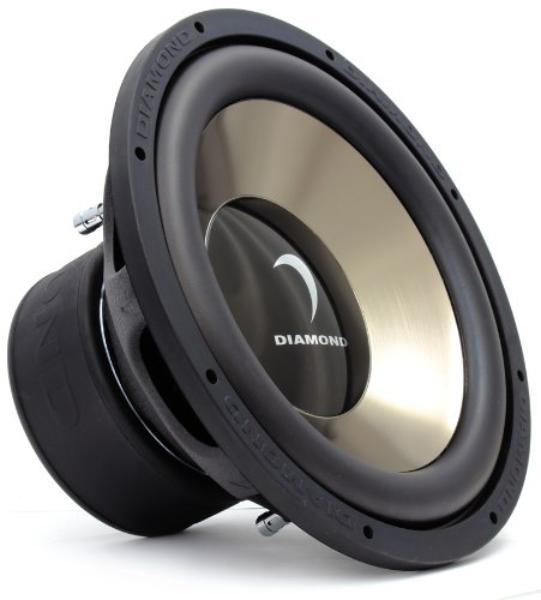

Diamond D315D4
Rating
DIAM
15"
FS(Hz)
26
VAS(l)
186.9
QTS
0.61
PWR(W)
800
SPL(dB)
88.7
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
26
Vas(l)
186.9
Qts
0.612
Qms
6.04
Qes
0.681
Bl(Tm)
18.1
Mms(gr)
214
Cms(mm/N)
0.175
Rms(kg/s)
5.78
Le(mH)
0
Re(Ohm)
6.4
Sd(sq.mm)
86600
Vd(l)
1.031
X-max(mm)
12
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.7
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.98
Total Diameter (mm)
0
Cutout Diameter (mm)
342
Mounting Depth (mm)
196
Magnet Diameter (mm)
169
Optimum Enclosures
Enclosures
Closed, BP4
