Model

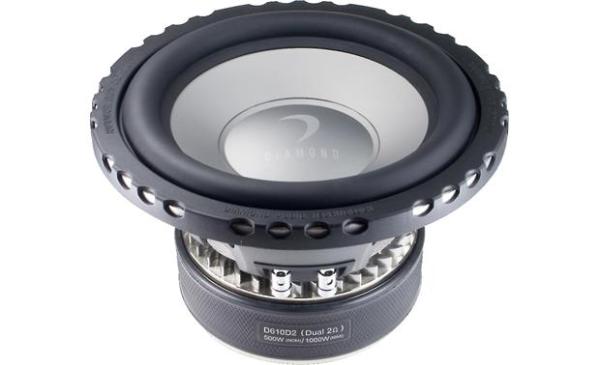

Diamond D610D4
Rating
DIAM
10"
FS(Hz)
40
VAS(l)
12.3
QTS
0.49
PWR(W)
1000
SPL(dB)
84
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
40
Vas(l)
12.3
Qts
0.49
Qms
3.97
Qes
0.56
Bl(Tm)
24.9
Mms(gr)
181
Cms(mm/N)
0.088
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
6
Sd(sq.mm)
32000
Vd(l)
0.59
X-max(mm)
18
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.26
Total Diameter (mm)
0
Cutout Diameter (mm)
234
Mounting Depth (mm)
142
Magnet Diameter (mm)
165
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
