Model

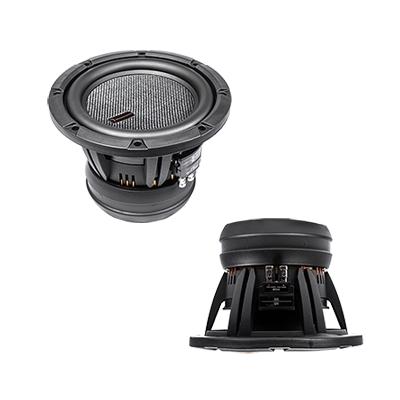

Diamond H102
Rating
DIAM
10"
FS(Hz)
27
VAS(l)
17.9
QTS
0.38
PWR(W)
1000
SPL(dB)
81.1
IMP(Ohm)
2x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
27
Vas(l)
17.9
Qts
0.38
Qms
4
Qes
0.42
Bl(Tm)
22.2
Mms(gr)
274
Cms(mm/N)
0.127
Rms(kg/s)
11.621
Le(mH)
0
Re(Ohm)
4.5
Sd(sq.mm)
31524
Vd(l)
0
X-max(mm)
18
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
228
Mounting Depth (mm)
178
Magnet Diameter (mm)
182
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
