Model

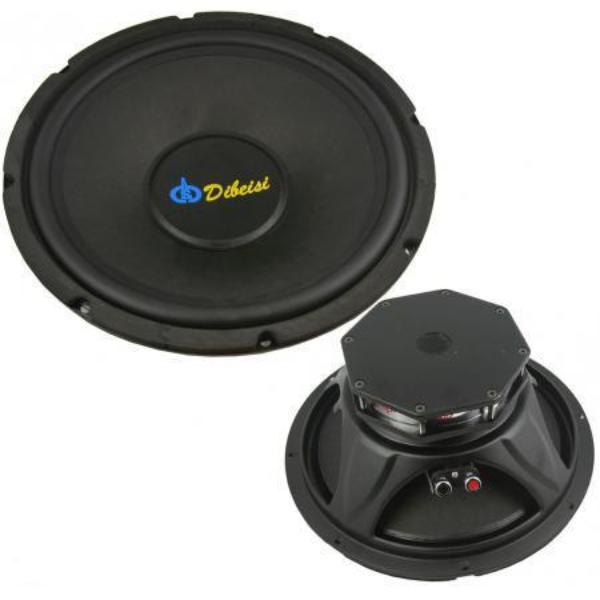

Dibeisi DBS-B1010
Rating
DIAM
10"
FS(Hz)
28
VAS(l)
69.7
QTS
0.46
PWR(W)
175
SPL(dB)
91
IMP(Ohm)
8x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
28
Vas(l)
69.7
Qts
0.458
Qms
4
Qes
0.517
Bl(Tm)
8.5
Mms(gr)
78
Cms(mm/N)
0.413
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
35300
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
175
RMS Power(W.)
90
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
91
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
