Model

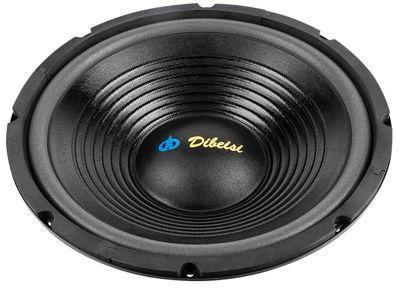

Dibeisi G1202-8
Rating
DIAM
12"
FS(Hz)
41.8
VAS(l)
43.6
QTS
0.73
PWR(W)
140
SPL(dB)
87.1
IMP(Ohm)
8x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
41.8
Vas(l)
43.6
Qts
0.73
Qms
3.4
Qes
0.94
Bl(Tm)
16.1
Mms(gr)
129
Cms(mm/N)
0.112
Rms(kg/s)
10
Le(mH)
0
Re(Ohm)
7.2
Sd(sq.mm)
52300
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
140
RMS Power(W.)
70
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.33
Sensitivity(dB) 1-W
87.1
Sensitivity(dB) 2.8-V
87.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
