Model

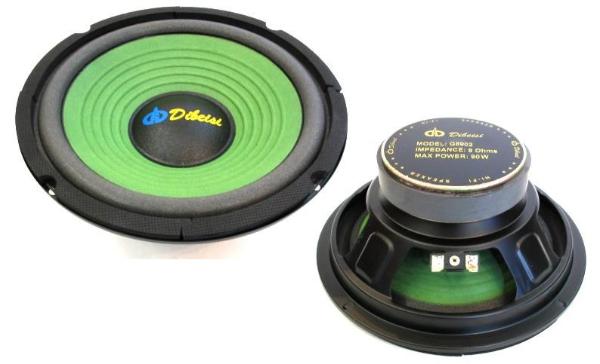

Dibeisi G8002-4
Rating
DIAM
8"
FS(Hz)
46.6
VAS(l)
40.1
QTS
0.95
PWR(W)
90
SPL(dB)
87.3
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
46.6
Vas(l)
40.1
Qts
0.95
Qms
5.4
Qes
1.153
Bl(Tm)
2.6
Mms(gr)
8
Cms(mm/N)
1.463
Rms(kg/s)
0.434
Le(mH)
0
Re(Ohm)
3.4
Sd(sq.mm)
13900
Vd(l)
0.042
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
90
RMS Power(W.)
45
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
180
Mounting Depth (mm)
85
Magnet Diameter (mm)
100
Optimum Enclosures
Enclosures
Closed, BP4
