Model

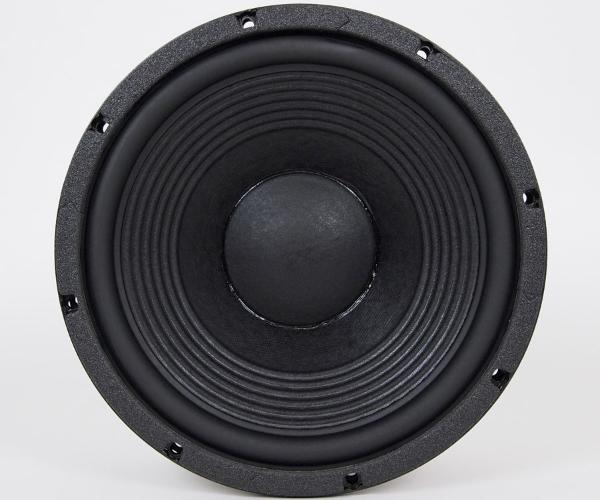

DIY Sound Group MAGNUM 12
Rating
DIAM
12"
FS(Hz)
41.9
VAS(l)
68.8
QTS
0.34
PWR(W)
1000
SPL(dB)
93.4
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
41.9
Vas(l)
68.8
Qts
0.34
Qms
13.1
Qes
0.35
Bl(Tm)
20.7
Mms(gr)
80
Cms(mm/N)
0.18
Rms(kg/s)
1.61
Le(mH)
1.55
Re(Ohm)
7.1
Sd(sq.mm)
52000
Vd(l)
0.473
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.39
Sensitivity(dB) 1-W
93.4
Sensitivity(dB) 2.8-V
94
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
315
Cutout Diameter (mm)
282
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
