Model

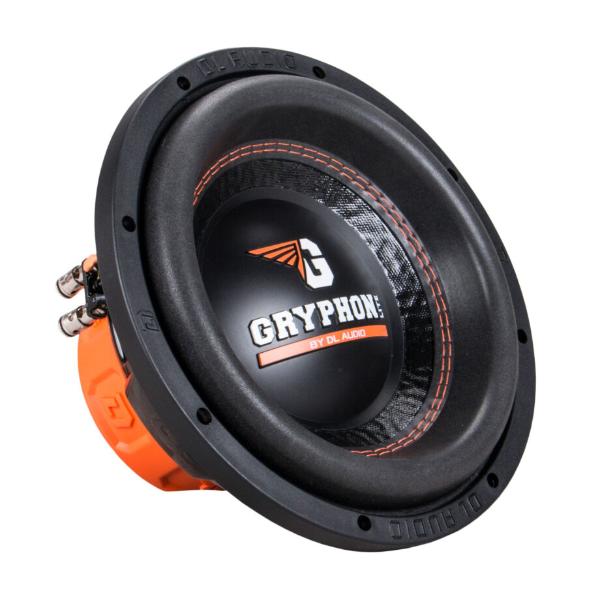

DL Audio Gryphon Lite 10 V.2
Rating
DIAM
10"
FS(Hz)
37.1
VAS(l)
25.2
QTS
0.71
PWR(W)
0
SPL(dB)
84
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
37.1
Vas(l)
25.2
Qts
0.71
Qms
0
Qes
0
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
0
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
263
Cutout Diameter (mm)
230
Mounting Depth (mm)
121
Magnet Diameter (mm)
155
Optimum Enclosures
Enclosures
Closed, BP4
