Model

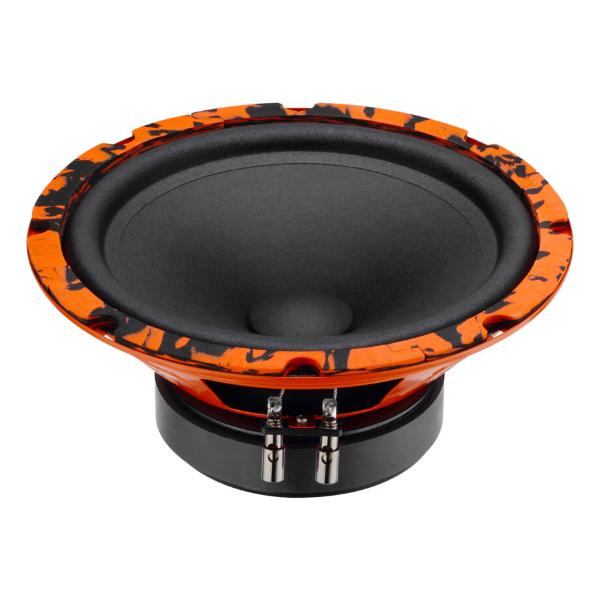

DL Audio Gryphon Pro 200 Midbass
Rating
DIAM
8"
FS(Hz)
57
VAS(l)
29.1
QTS
0.46
PWR(W)
0
SPL(dB)
93.2
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
57
Vas(l)
29.1
Qts
0.46
Qms
0
Qes
0
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
0
RMS Power(W.)
140
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
93.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
209
Cutout Diameter (mm)
184
Mounting Depth (mm)
83
Magnet Diameter (mm)
115
Optimum Enclosures
Enclosures
Vented, BP6
