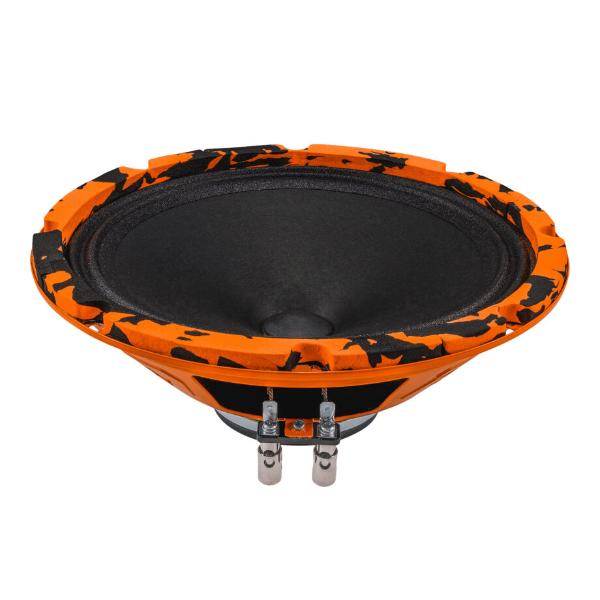

DL Audio Gryphon Pro 200 Neo
DL Audio Gryphon Pro 200 Neo
Model

DL Audio Gryphon Pro 200 Neo

Rating
DIAM
8"
FS(Hz)
65
VAS(l)
26.1
QTS
0.38
PWR(W)
0
SPL(dB)
98.9
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
65
Vas(l)
26.1
Qts
0.38
Qms
0
Qes
0
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0

General Parameters

Diameter (inch)
8
Max Power(W.)
0
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
98.9
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
209
Cutout Diameter (mm)
184
Mounting Depth (mm)
74
Magnet Diameter (mm)
74

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
