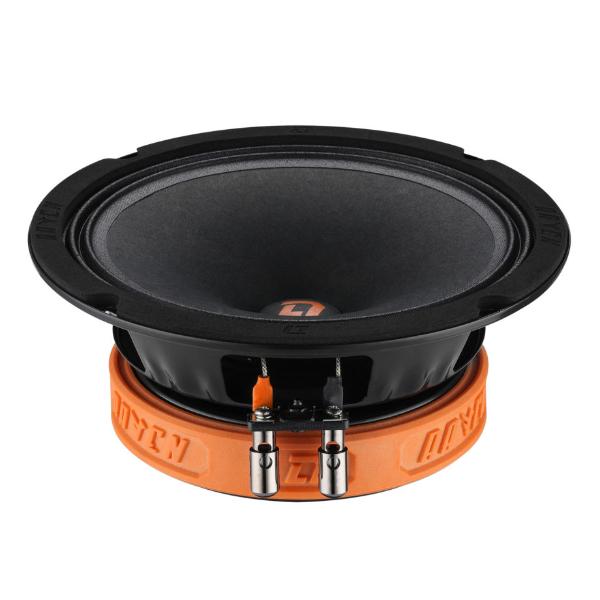

DL Audio Raven 165
DL Audio Raven 165
Model

DL Audio Raven 165

Rating
DIAM
6"
FS(Hz)
115
VAS(l)
10
QTS
0.5
PWR(W)
0
SPL(dB)
96.7
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
115
Vas(l)
10
Qts
0.5
Qms
0
Qes
0
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0

General Parameters

Diameter (inch)
6
Max Power(W.)
0
RMS Power(W.)
110
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
96.7
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
167
Cutout Diameter (mm)
146
Mounting Depth (mm)
64
Magnet Diameter (mm)
118

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
