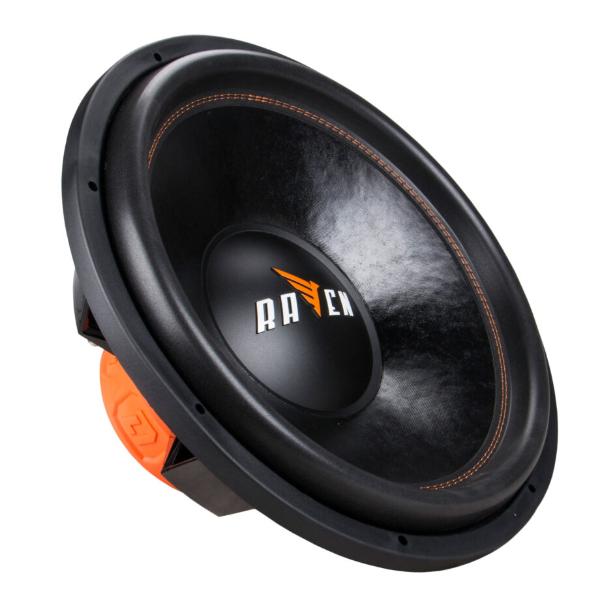

DL Audio Raven 18
DL Audio Raven 18
Model

DL Audio Raven 18

Rating
DIAM
18"
FS(Hz)
32
VAS(l)
134.6
QTS
1.13
PWR(W)
0
SPL(dB)
86.1
IMP(Ohm)
2x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
32
Vas(l)
134.6
Qts
1.125
Qms
0
Qes
0
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0

General Parameters

Diameter (inch)
18
Max Power(W.)
0
RMS Power(W.)
800
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.1
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
468
Cutout Diameter (mm)
424
Mounting Depth (mm)
215
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
