Model

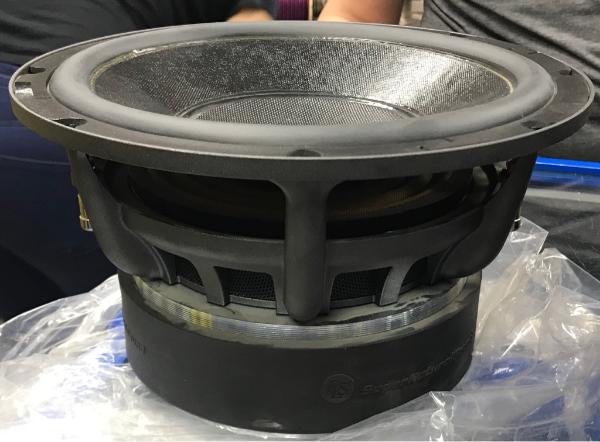

DLS IR10I
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
10"
FS(Hz)
43.5
VAS(l)
12
QTS
0.67
PWR(W)
800
SPL(dB)
82.4
IMP(Ohm)
4x2
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
43.5
Vas(l)
12
Qts
0.67
Qms
2.8
Qes
0.87
Bl(Tm)
15.1
Mms(gr)
227
Cms(mm/N)
0.059
Rms(kg/s)
22.15
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
38000
Vd(l)
0.532
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
800
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.11
Sensitivity(dB) 1-W
82.4
Sensitivity(dB) 2.8-V
86.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
266
Cutout Diameter (mm)
236
Mounting Depth (mm)
150
Magnet Diameter (mm)
180
Optimum Enclosures
Enclosures
Closed, BP4
