Model

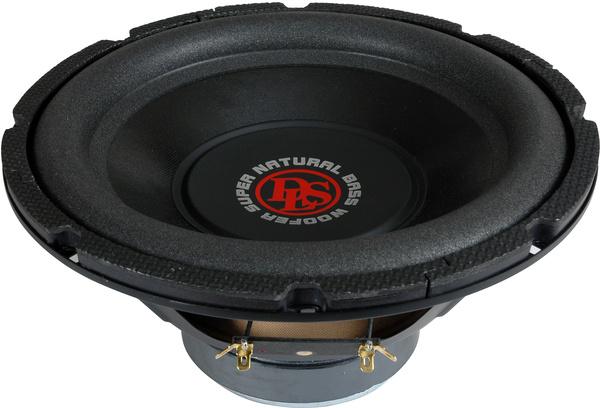

DLS KW10
Rating
DIAM
10"
FS(Hz)
37
VAS(l)
50
QTS
0.52
PWR(W)
400
SPL(dB)
88.2
IMP(Ohm)
4x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
37
Vas(l)
50
Qts
0.52
Qms
5.28
Qes
0.58
Bl(Tm)
9.9
Mms(gr)
60
Cms(mm/N)
0.309
Rms(kg/s)
2.637
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
33800
Vd(l)
0.304
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.42
Sensitivity(dB) 1-W
88.2
Sensitivity(dB) 2.8-V
91.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
267
Cutout Diameter (mm)
236
Mounting Depth (mm)
116
Magnet Diameter (mm)
120
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
