Model

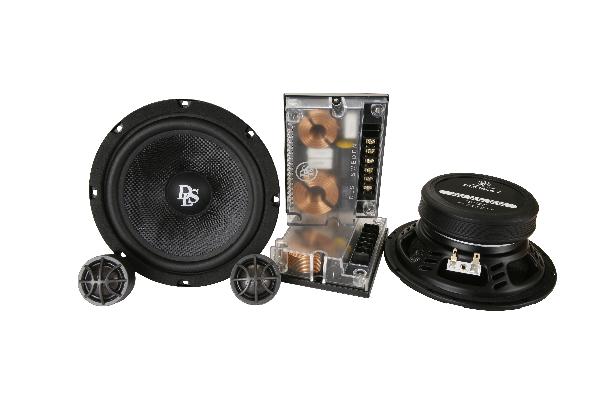

DLS MC6.2
Rating
DIAM
6"
FS(Hz)
56.5
VAS(l)
10
QTS
0.51
PWR(W)
200
SPL(dB)
87
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
56.5
Vas(l)
10
Qts
0.51
Qms
7
Qes
0.55
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
200
RMS Power(W.)
80
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0.6
Total Diameter (mm)
0
Cutout Diameter (mm)
145
Mounting Depth (mm)
67
Magnet Diameter (mm)
100
Optimum Enclosures
Enclosures
Vented, BP6
