Model

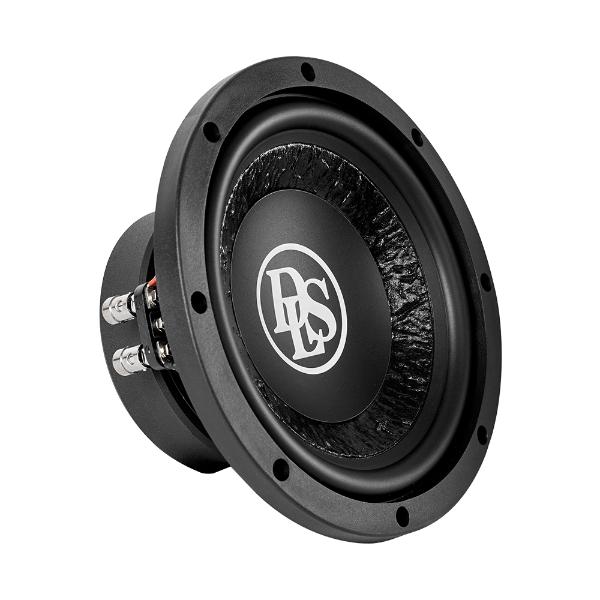

DLS PE8.D2
Rating
DIAM
8"
FS(Hz)
33.2
VAS(l)
25.3
QTS
0.48
PWR(W)
400
SPL(dB)
84.4
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33.2
Vas(l)
25.3
Qts
0.48
Qms
7.83
Qes
0.51
Bl(Tm)
10.7
Mms(gr)
62
Cms(mm/N)
0.371
Rms(kg/s)
1.652
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
21720
Vd(l)
0.195
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.18
Sensitivity(dB) 1-W
84.4
Sensitivity(dB) 2.8-V
87.7
Mounting Information
Speaker Displacement (l)
0.8
Total Diameter (mm)
212
Cutout Diameter (mm)
178
Mounting Depth (mm)
94
Magnet Diameter (mm)
126
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
