Model

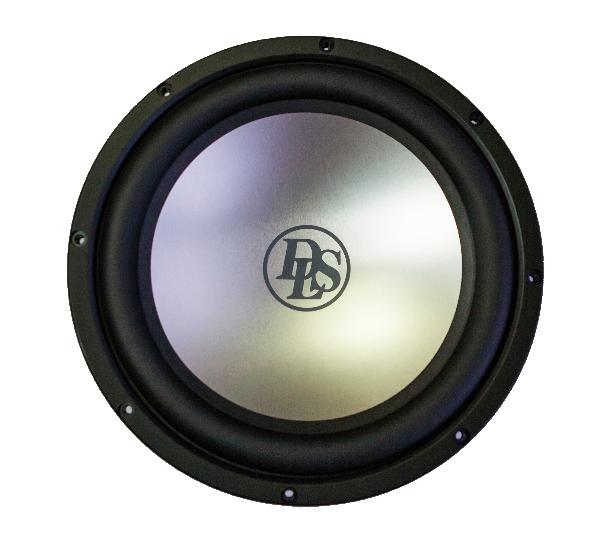

DLS RCW12
Rating
DIAM
12"
FS(Hz)
29.7
VAS(l)
48.6
QTS
0.38
PWR(W)
1000
SPL(dB)
88.4
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
29.7
Vas(l)
48.6
Qts
0.38
Qms
3.16
Qes
0.28
Bl(Tm)
17.5
Mms(gr)
235
Cms(mm/N)
0.122
Rms(kg/s)
13.901
Le(mH)
0
Re(Ohm)
1.9
Sd(sq.mm)
53100
Vd(l)
0.478
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1000
RMS Power(W.)
400
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.44
Sensitivity(dB) 1-W
88.4
Sensitivity(dB) 2.8-V
94.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
315
Cutout Diameter (mm)
284
Mounting Depth (mm)
155
Magnet Diameter (mm)
188
Optimum Enclosures
Enclosures
Vented, BP6
