Model

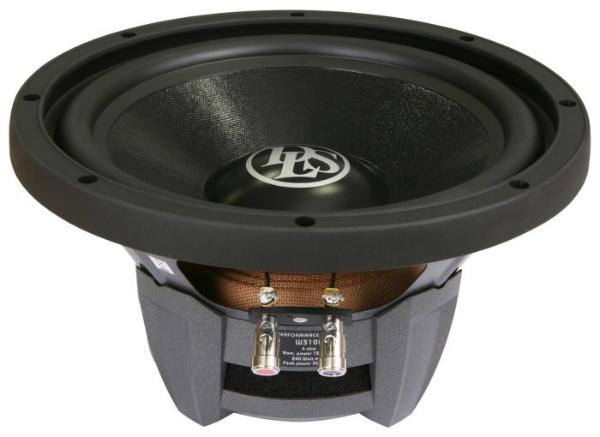

DLS W310D
Rating
DIAM
10"
FS(Hz)
36
VAS(l)
48.6
QTS
0.28
PWR(W)
200
SPL(dB)
90.4
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
36
Vas(l)
48.6
Qts
0.28
Qms
2.49
Qes
0.315
Bl(Tm)
11.5
Mms(gr)
57
Cms(mm/N)
0.346
Rms(kg/s)
5.133
Le(mH)
1.1
Re(Ohm)
3.3
Sd(sq.mm)
31460
Vd(l)
0.157
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
200
RMS Power(W.)
120
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.69
Sensitivity(dB) 1-W
90.4
Sensitivity(dB) 2.8-V
94.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
265
Cutout Diameter (mm)
240
Mounting Depth (mm)
134
Magnet Diameter (mm)
145
Optimum Enclosures
Enclosures
Vented, BP6
