Model

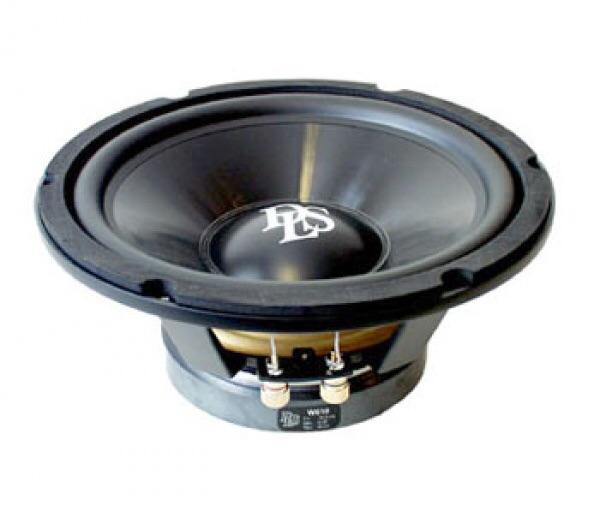

DLS W610D
Rating
DIAM
10"
FS(Hz)
33
VAS(l)
40.3
QTS
0.22
PWR(W)
360
SPL(dB)
89.8
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
40.3
Qts
0.22
Qms
3.6
Qes
0.23
Bl(Tm)
16
Mms(gr)
81
Cms(mm/N)
0.29
Rms(kg/s)
4.63
Le(mH)
1.58
Re(Ohm)
3.6
Sd(sq.mm)
3146
Vd(l)
0.028
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
360
RMS Power(W.)
180
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.6
Sensitivity(dB) 1-W
89.8
Sensitivity(dB) 2.8-V
93.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
262
Cutout Diameter (mm)
232
Mounting Depth (mm)
109
Magnet Diameter (mm)
145
Optimum Enclosures
Enclosures
Vented, BP6
