Model

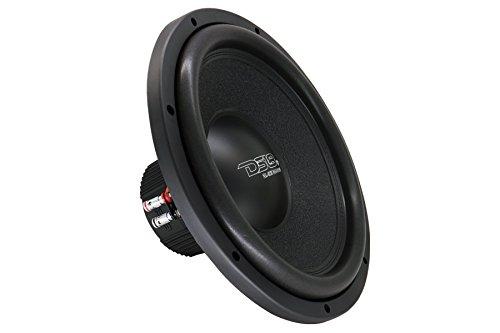

DS18 Car Audio BD-X124D
Rating
DIAM
12"
FS(Hz)
42.4
VAS(l)
32.7
QTS
0.73
PWR(W)
1200
SPL(dB)
86.8
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
42.4
Vas(l)
32.7
Qts
0.734
Qms
7.267
Qes
0.816
Bl(Tm)
9.4
Mms(gr)
155
Cms(mm/N)
0.09
Rms(kg/s)
5.69
Le(mH)
0
Re(Ohm)
1.7
Sd(sq.mm)
50645
Vd(l)
1.155
X-max(mm)
23
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.98
Total Diameter (mm)
0
Cutout Diameter (mm)
282
Mounting Depth (mm)
145
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
